Project at Harvard GSD
In Collaboration with Wentao Guo
Conceptualized 2021
“Food, Family, Feminism” takes a
materialist feminist approach to address the social issue of unpaid
domestic labor and traditional gender role bias. Especially under the
influence of COVID-19, increased time spent at homes and unsupported
childcare deepens the gender divide in
domestic labor.
Modern kitchens allow one to perform
many tasks in one tight setting, but this efficiency keeps Female Labor isolated and unacknowledged by the society and takes away opportunities
of organic collaborating, sharing, and
learning in kitchens. We conclude
that many domestic spaces, especially kitchens, are designed to normalize
gender inequality in domestic labor
participation.

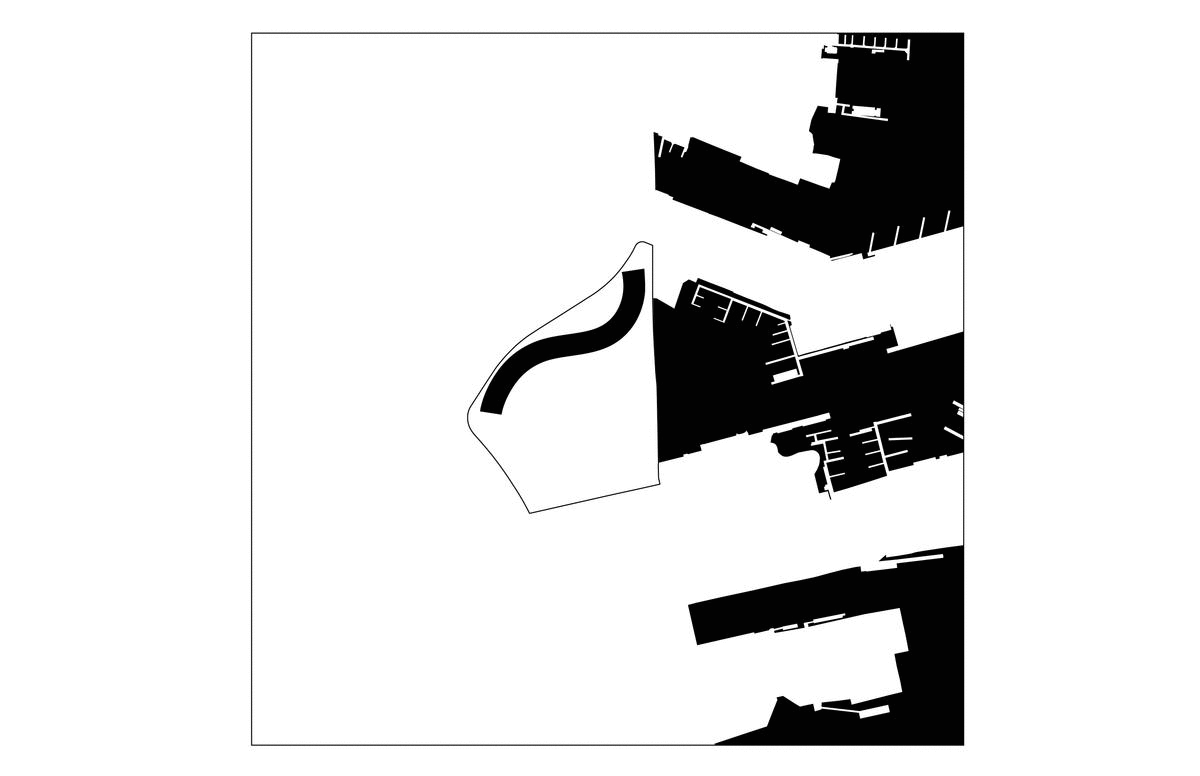

Our figural concept of the project starts with squiggles on strips. The squiggle represents the occupation and movement of the residents and the strip is the housing unit. The figural language of the squiggle is finalized as we fit
it into the existing site cures of the park.

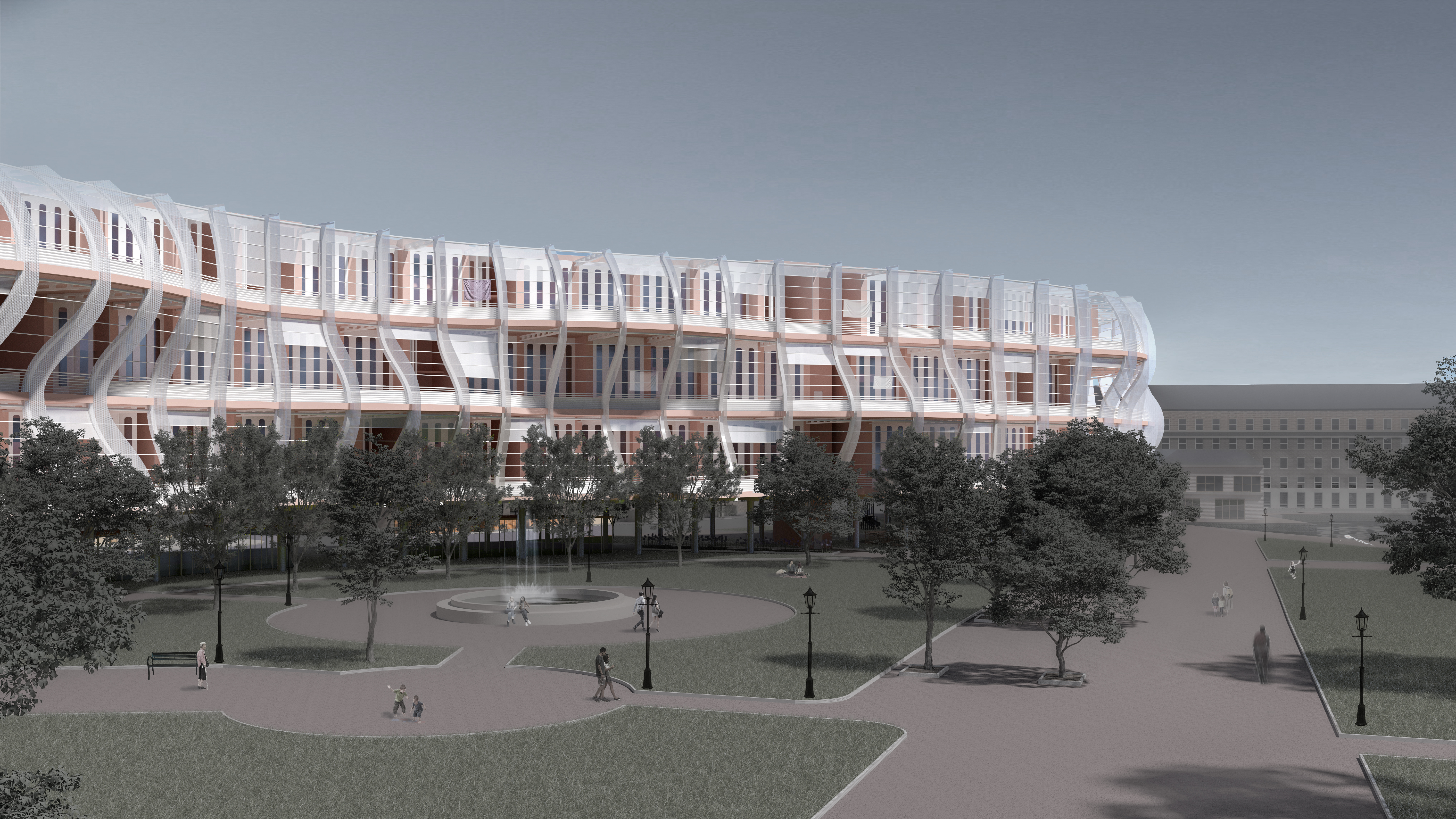

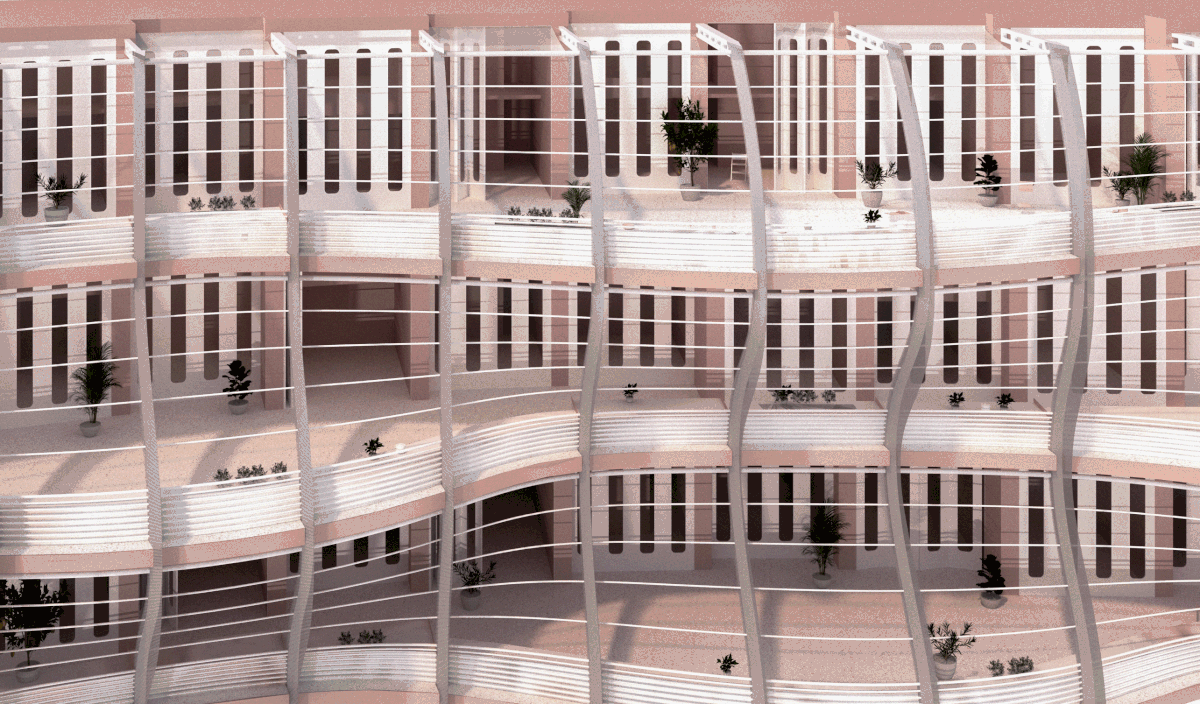

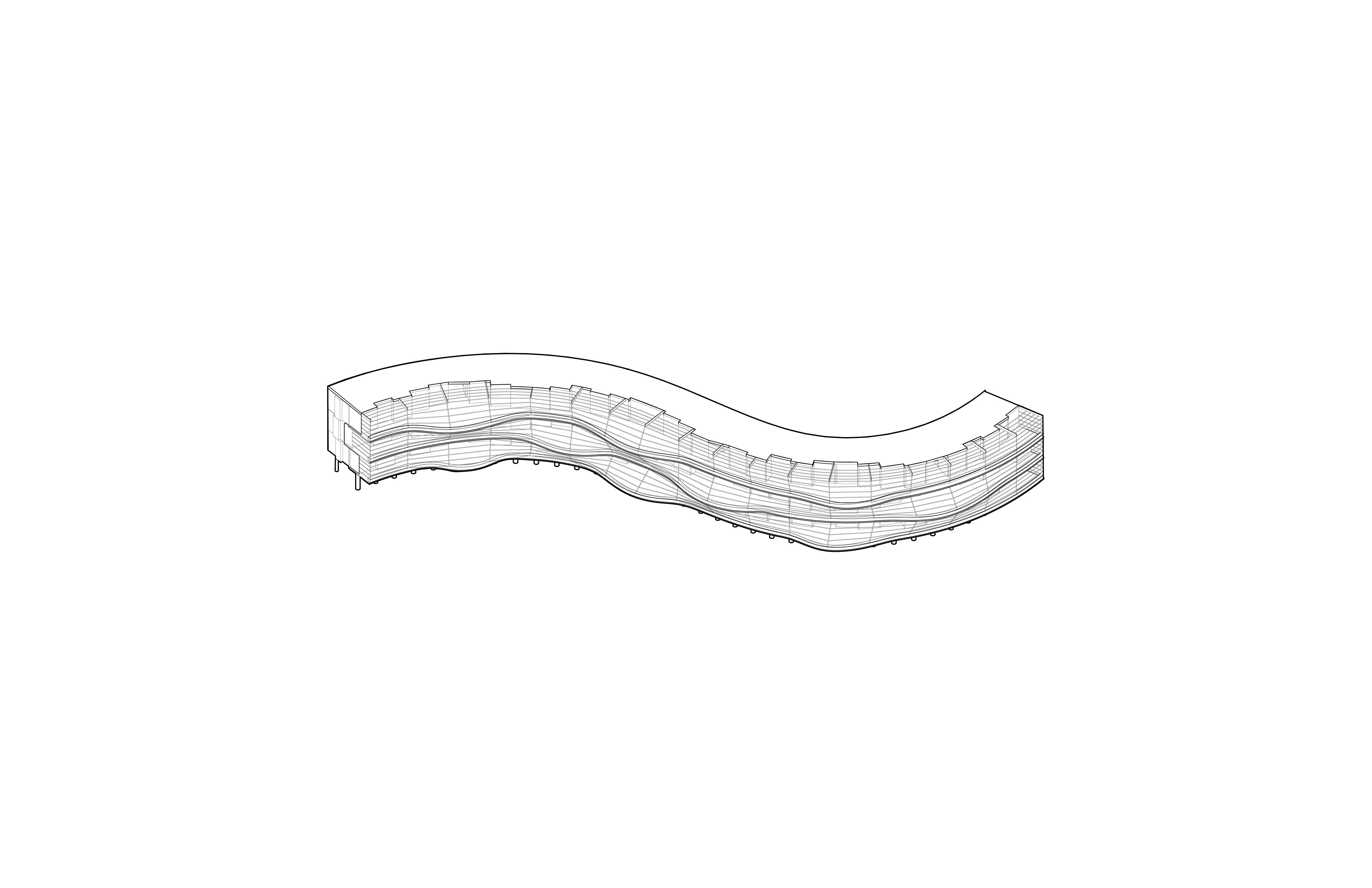

The building has a strong two sidedness due to the very open nature of the park and private need of the street facing wall. The roof only covers the unit not the corridors, exposing the truss structure. Metaphorically, the

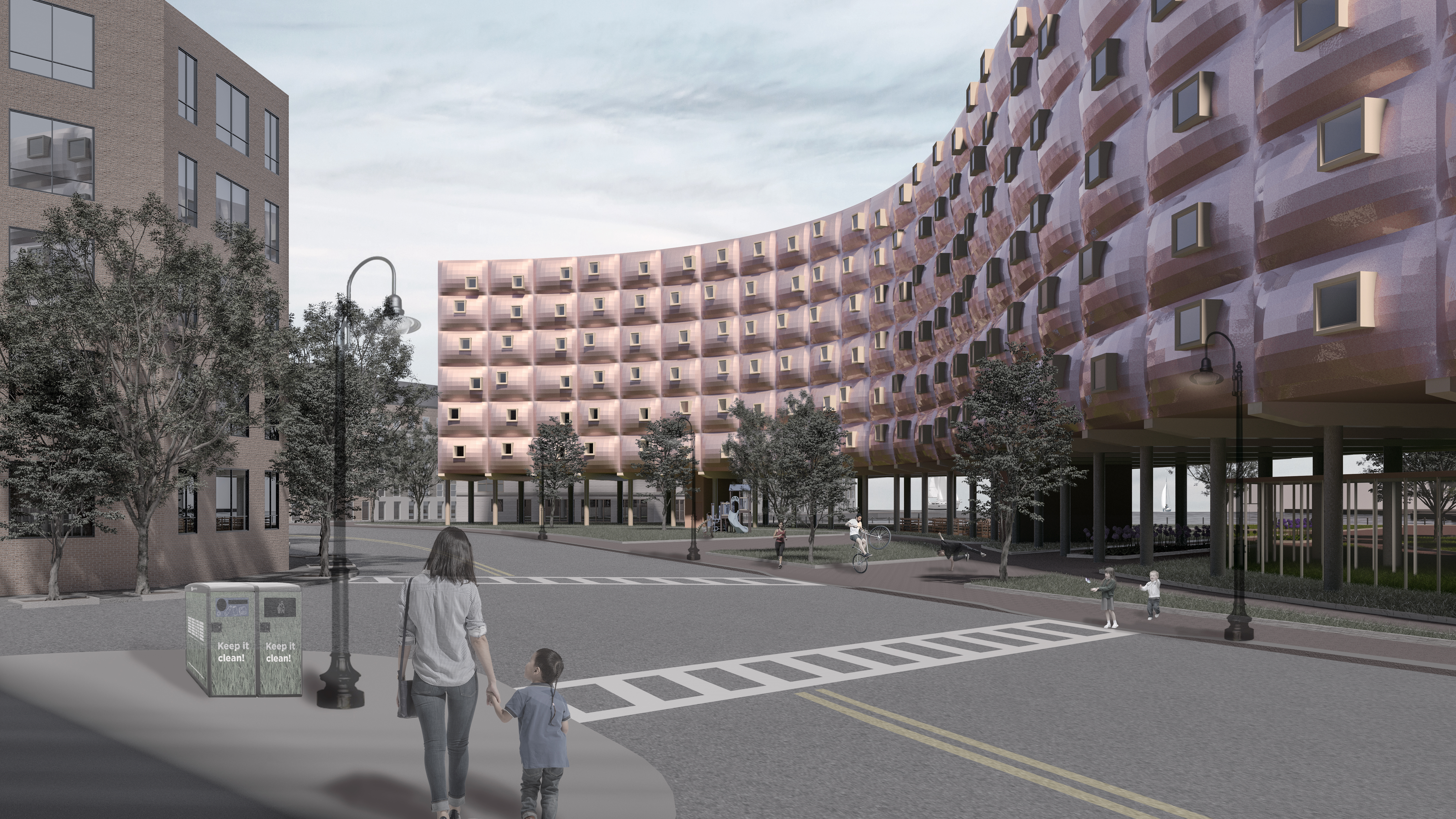

north facade is the smooth and polished comparison to the unfinished, open, and structurally exposed south facade.
The floor plan of 2, 4, 6 floor connecting units to the corridor shows the design of shuffling layers and its relationship to the corridor. Each floor has around 33 - 35 units with a width of 16.5 feet and depth of 30 - 45 feet.

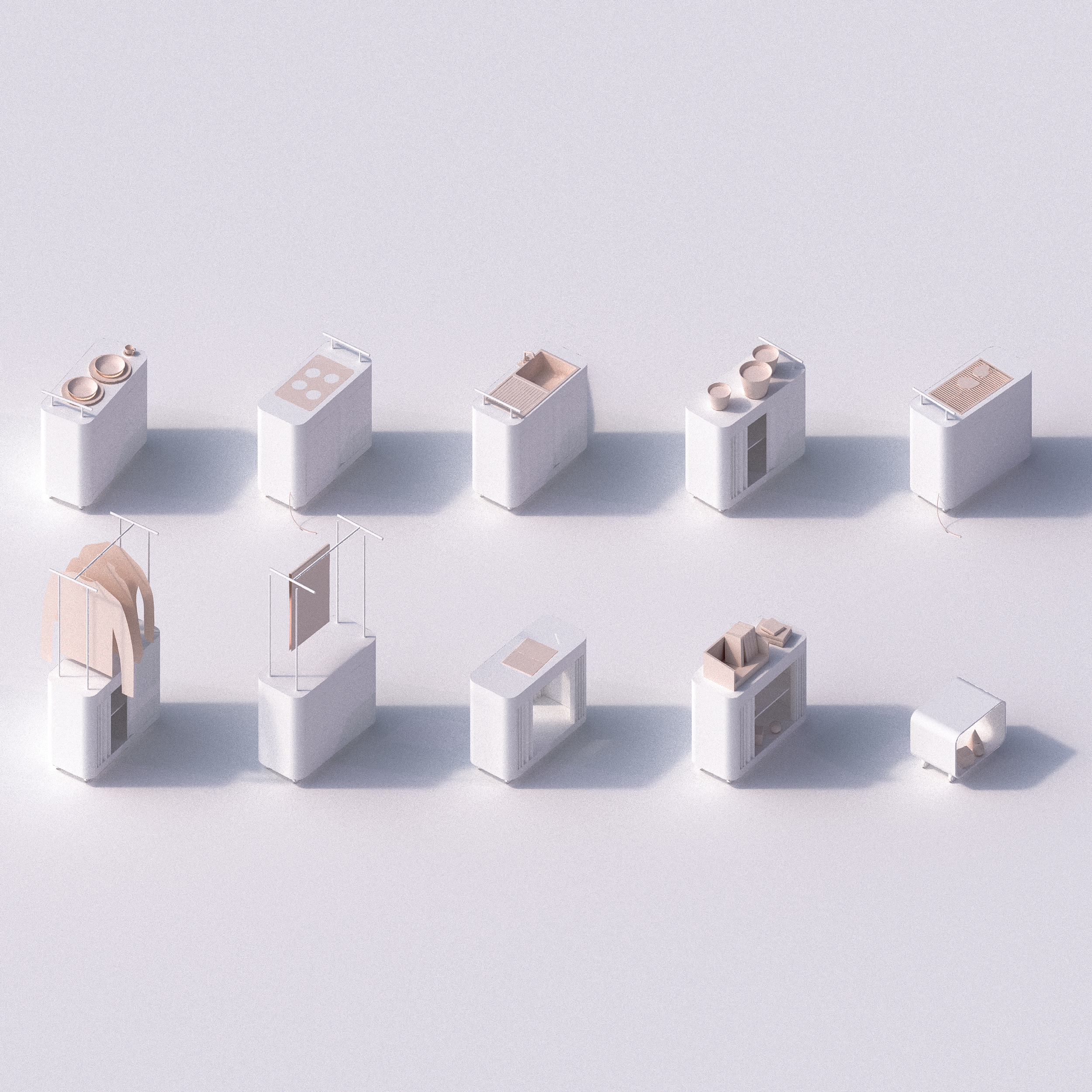

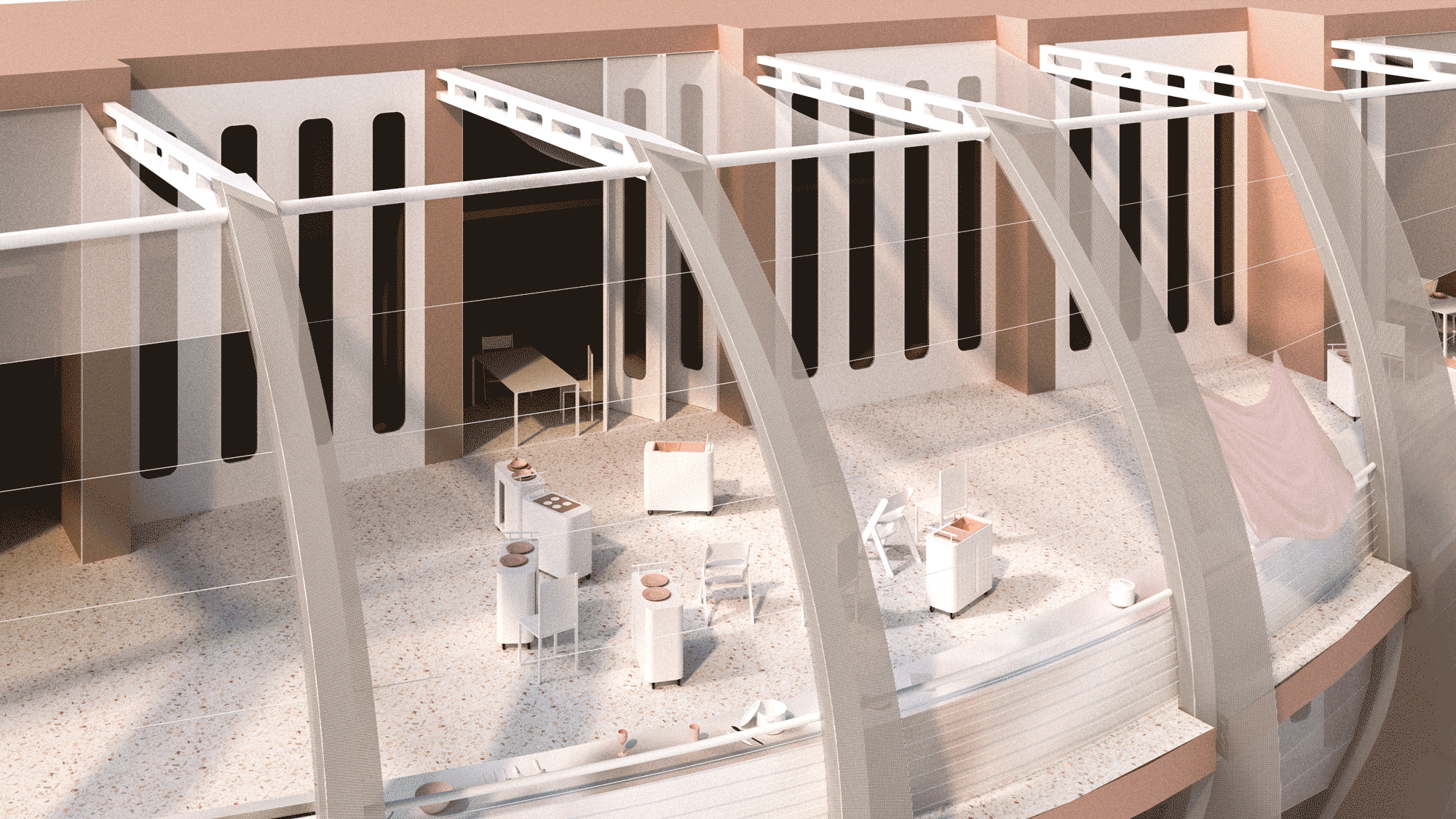

We designed a kitchen cart set that decomposes the
functionality of kitchen into several mobile segmentwhich both adults and children can utilize. Based on

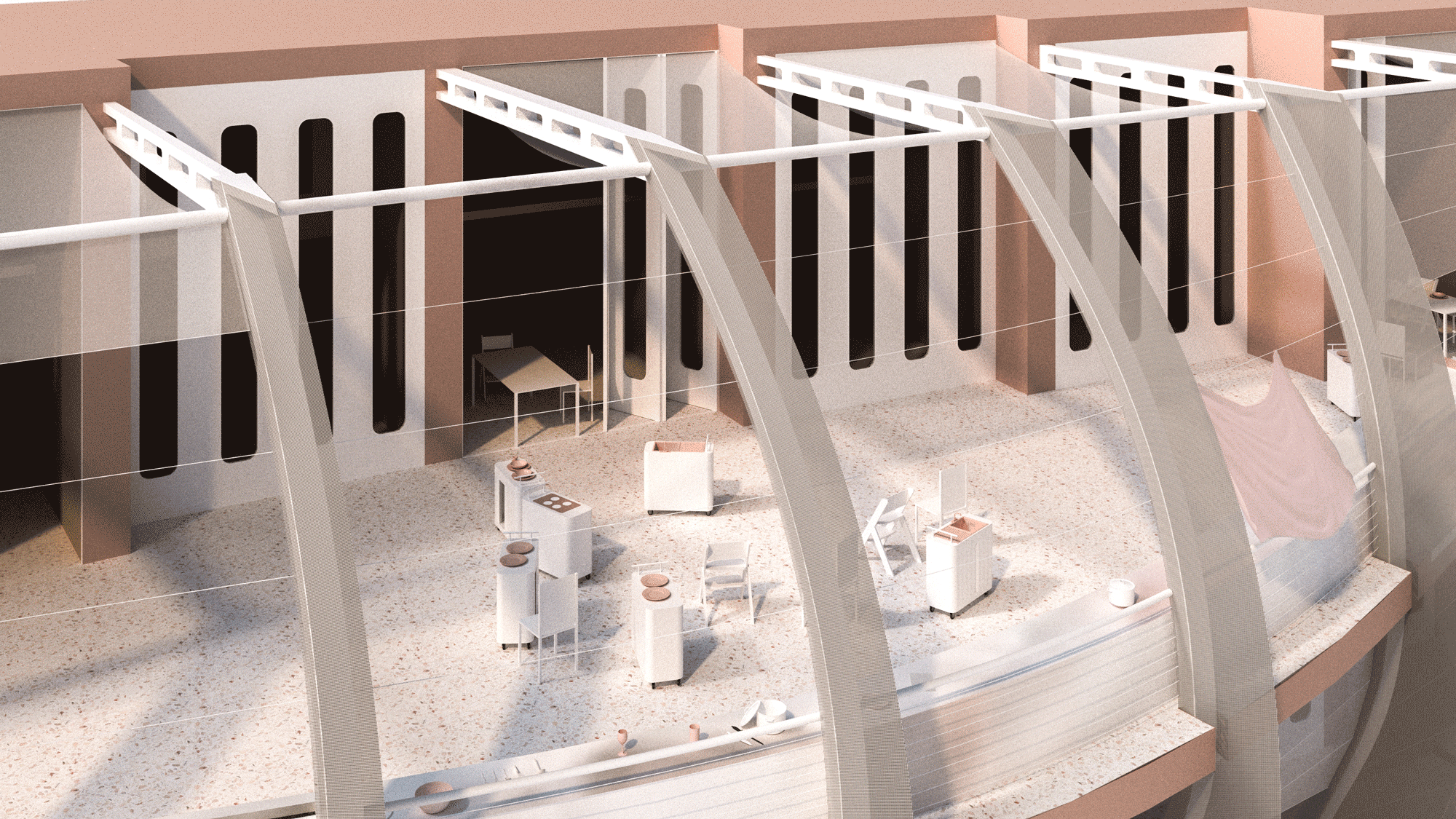

activities, festival and family life styles, thecarts could have difference arrangements. The render
above shows a birthday party on the “pouch where different families wheeled out their kitchen

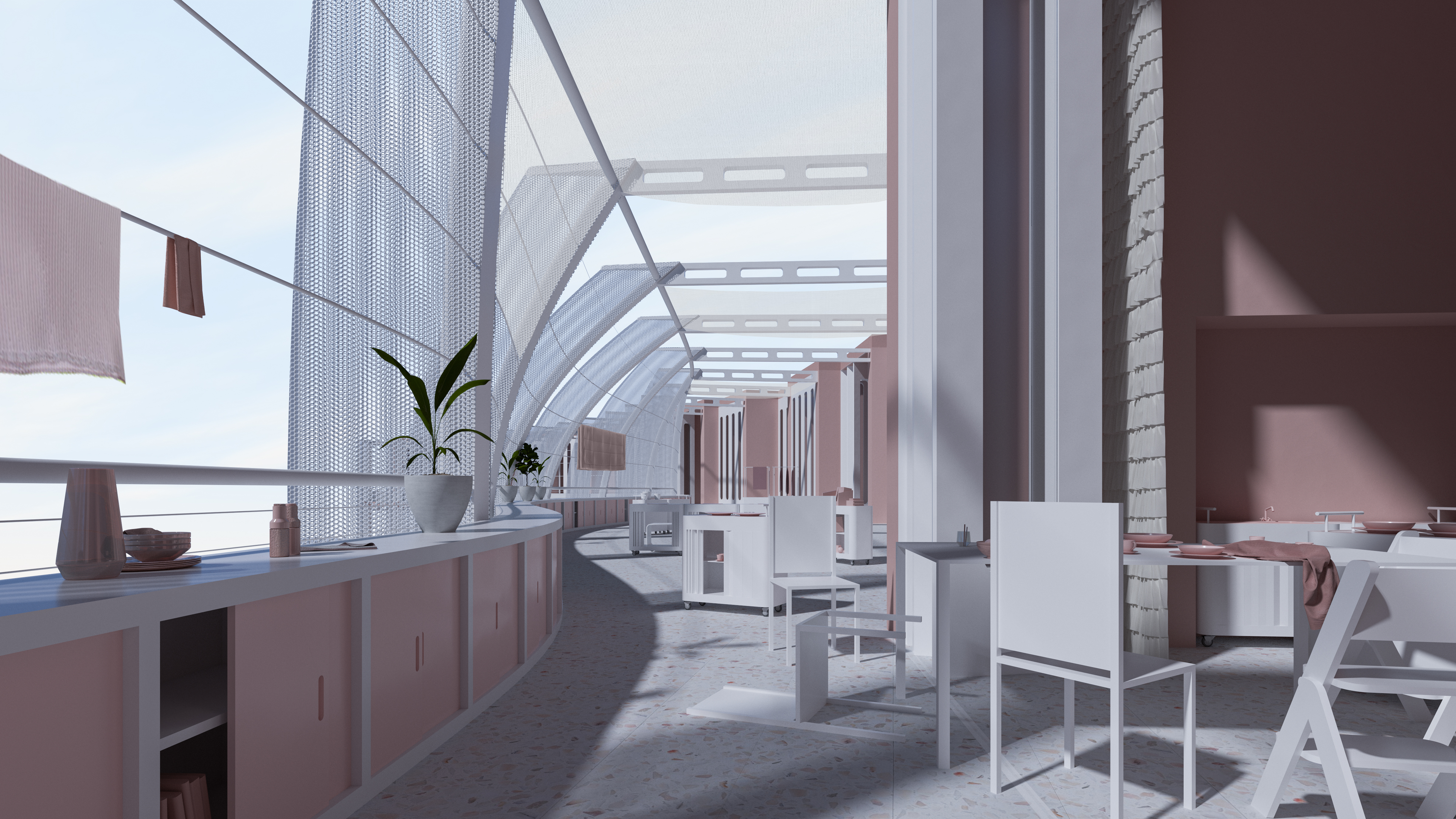

carts to make cooking and eating arrangement for the party. The exterior kitchen provides facility for BBQ
and large cookout with natural ventilation.
This critical section below examines the layered-ness and decomposition of lifestyle from the exterior, extrovert facade facing the park to the introvert and urban express on throad side. The duplex sitting on the floor plate maximizes the winter sunlight and the
summer shading.

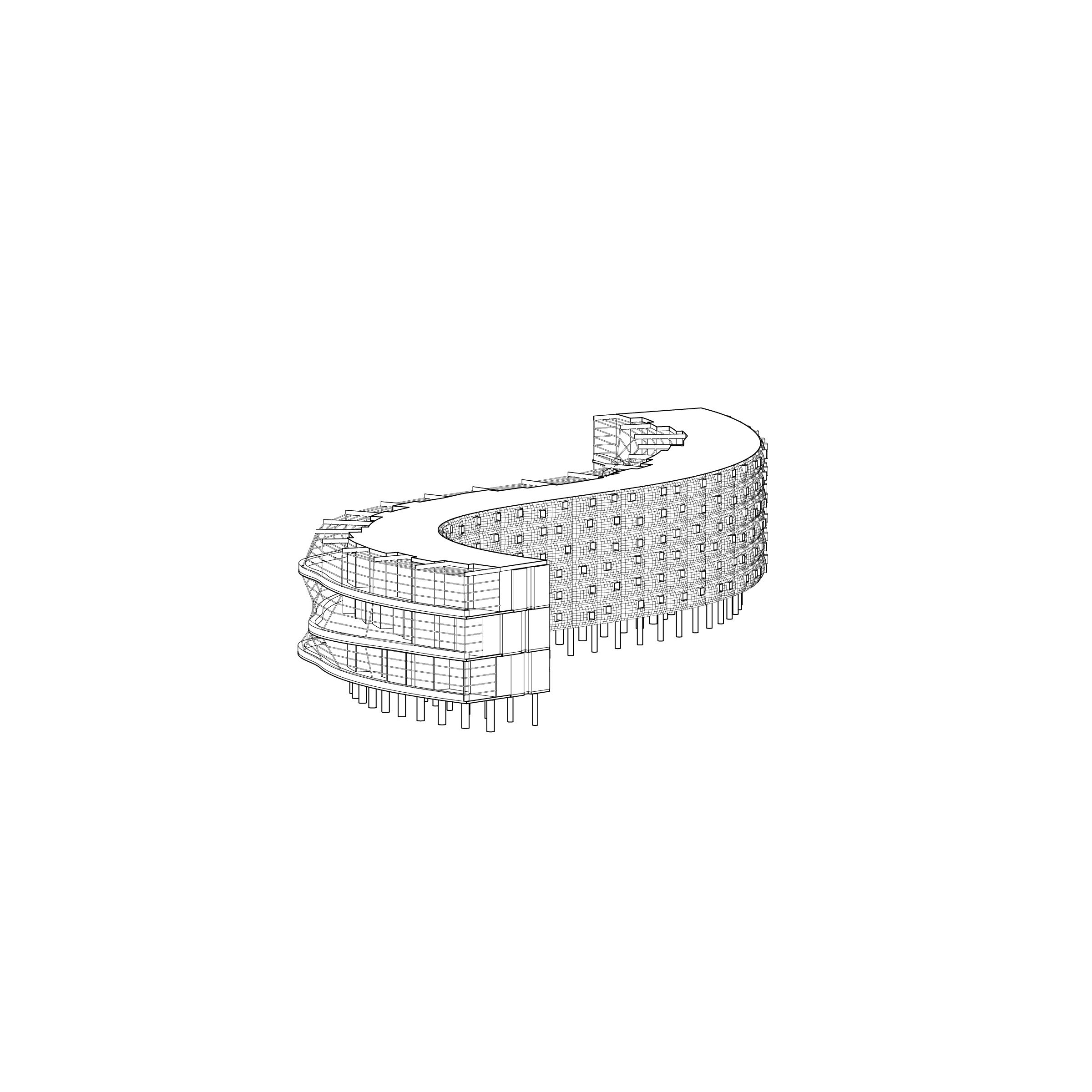

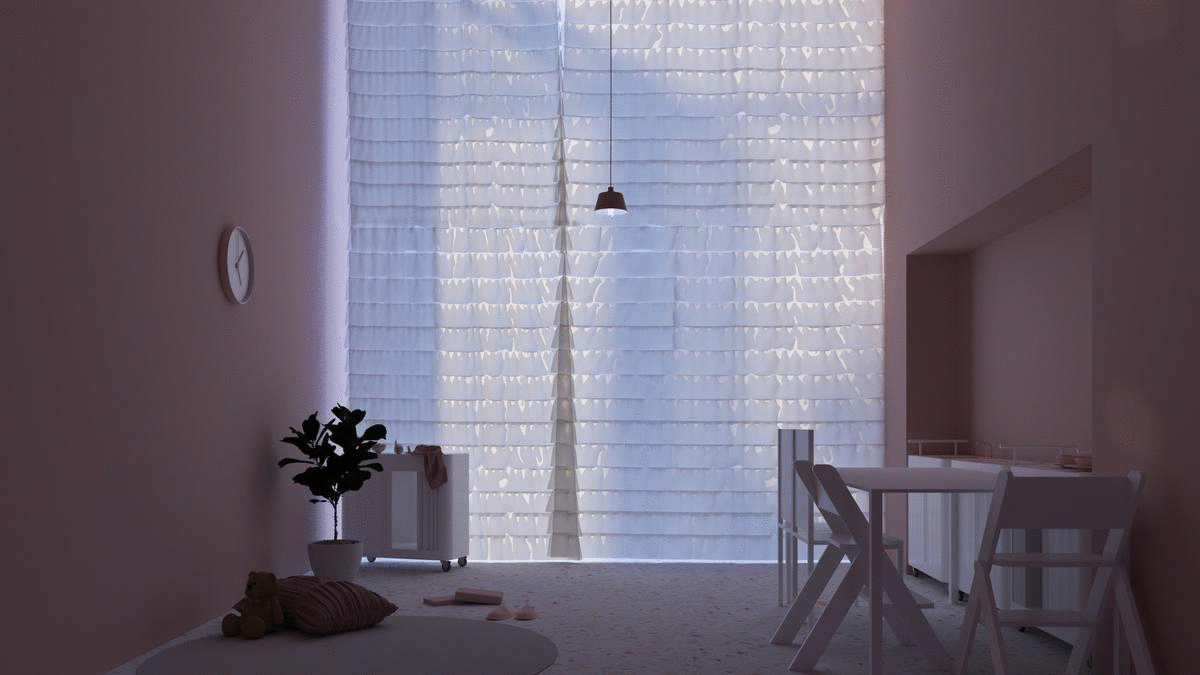

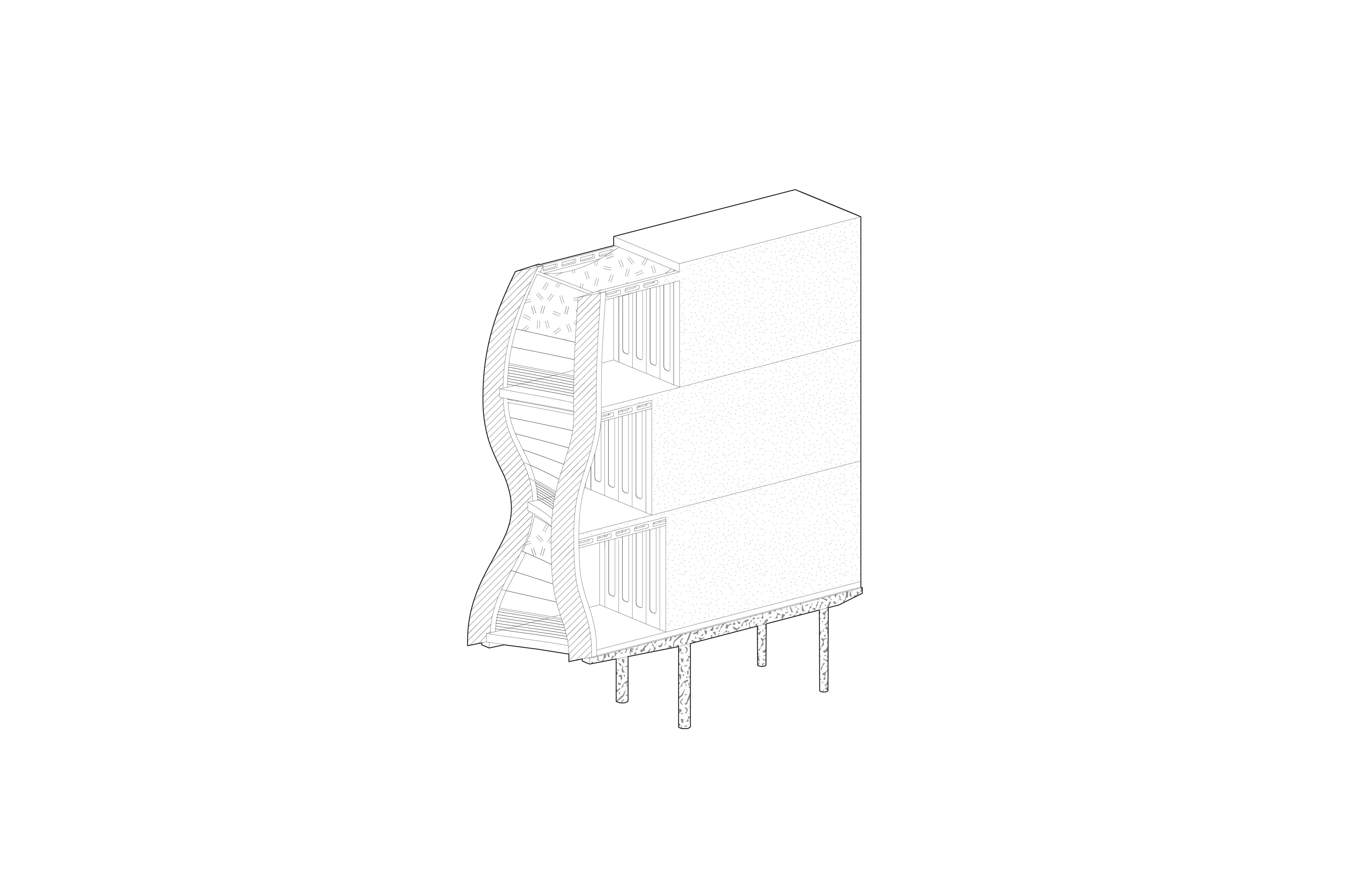

Each unit has two parts of kitchen: the soft kitchen inside of the unit handling light meals and snacking. There are 6 unit types ranging from 1BR to 3BR. Structurally, each floor plate is supported by the caged network
of exposed facade beams, trusses
under each floor plate and the ground column vertically aligned
with each unit wall.
